CloudFormation

Introduction

Note

With LocalStack version 4.8.0 (and above) we’ve introduced a new CloudFormation engine with Change Sets at its core, which would allow proper update and rollback support in the near future.

This includes internal changes that may affect existing stacks or deployment behavior. Most users will benefit from the new behavior automatically, but there are a few important notes to be aware of:

• Persistence is not backwards-compatible: If you use persistent state, your stacks may not load correctly between the new and old engines.
• Default behavior has changed: If your deployment logic depends on specific legacy quirks or unsupported update behavior, you may encounter issues.
• New features and improvements: are now available under the new engine.

If you encounter problems or regressions you can revert to the legacy engine by setting:

PROVIDER_OVERRIDE_CLOUDFORMATION=engine-legacy

Note

Upcoming Change in Handling Unsupported Resource Types

In a future LocalStack release, the behavior of the CloudFormation engine will change when stacks contain unsupported AWS resource types.

Currently, unsupported resources are silently ignored or mocked so that the rest of the stack can proceed.

With the upcoming change, CloudFormation will instead fail the deployment if the template includes unsupported resource types.

To keep the current behavior and prepare for this breaking change ahead, you can enable it manually:

CFN_IGNORE_UNSUPPORTED_RESOURCE_TYPES=1

CloudFormation is a service provided by Amazon Web Services (AWS) that allows you to define and provision infrastructure as code. It enables you to create, update, and manage resources in a repeatable and automated manner using declarative templates. With CloudFormation, you can use JSON or YAML templates to define your desired infrastructure state. You can specify resources, their configurations, dependencies, and relationships in these templates.

LocalStack supports CloudFormation, allowing you to use the CloudFormation APIs in your local environment to declaratively define your architecture on the AWS, including resources such as S3 Buckets, Lambda Functions, and much more. The API Coverage section and feature coverage provides information on the extent of CloudFormation’s integration with LocalStack.

Getting started

This guide is designed for users new to CloudFormation and assumes basic knowledge of the AWS CLI and our awslocal wrapper script.

Start your LocalStack container using your preferred method. We will demonstrate how to deploy a simple CloudFormation stack consisting of a single S3 Bucket with the AWS CLI.

Create a CloudFormation Stack

CloudFormation stack is a collection of AWS resources that you can create, update, or delete as a single unit. Stacks are defined using JSON or YAML templates. Use the following code snippet and save the content in either cfn-quickstart-stack.yaml or cfn-quickstart-stack.json, depending on your preferred format.

YAML

Resources:
  LocalBucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: cfn-quickstart-bucket

JSON

{
  "Resources": {
    "LocalBucket": {
      "Type": "AWS::S3::Bucket",
      "Properties": {
        "BucketName": "cfn-quickstart-bucket"
      }
    }
  }
}

Deploy the CloudFormation Stack

You can deploy the CloudFormation stack using the AWS CLI with the deploy command. The deploy command creates and updates CloudFormation stacks. Run the following command to deploy the stack:

awslocal cloudformation deploy \
    --stack-name cfn-quickstart-stack \
    --template-file "./cfn-quickstart-stack.yaml"

You can verify that the stack was created successfully by listing the S3 buckets in your LocalStack container using the ListBucket API. Run the following command to list the buckets:

awslocal s3api list-buckets

Delete the CloudFormation Stack

You can delete the CloudFormation stack using the delete-stack command. Run the following command to delete the stack along with all the resources created by the stack:

awslocal cloudformation delete-stack \
    --stack-name cfn-quickstart-stack

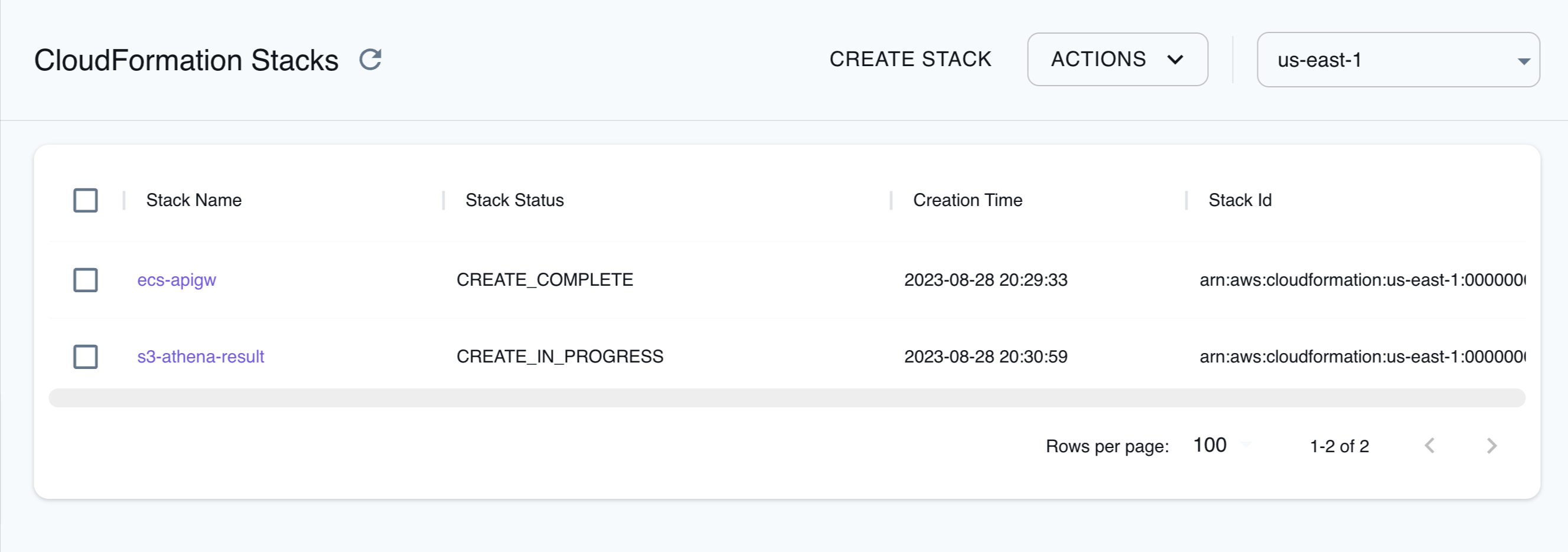

Resource Browser

The LocalStack Web Application provides a Resource Browser for managing CloudFormation stacks to manage your AWS resources locally. You can access the Resource Browser by opening the LocalStack Web Application in your browser, navigating to the Resources section, and then clicking on CloudFormation under the Management/Governance section.

The Resource Browser allows you to perform the following actions:

• Create Stack: Create a new CloudFormation stack by clicking on Create Stack and provide a template file or URL, including the stack name and parameters.
• Edit Stack: Edit an existing CloudFormation stack by clicking on Edit Stack and editing the stack name and parameters and clicking on Submit.
• View Stack: View an existing CloudFormation stack by clicking on the Stack Name and viewing the stack details, including the stack name, status, and resources.
• Delete Stack: Delete an existing CloudFormation stack by clicking on the Stack Name and clicking on Actions and then Remove Selected.

Examples

The following code snippets and sample applications provide practical examples of how to use CloudFormation in LocalStack for various use cases:

• Serverless Container-based APIs with Amazon ECS & API Gateway
• Deploying containers on ECS clusters using ECR and Fargate
• Messaging Processing application with SQS, DynamoDB, and Fargate

Best practices

CloudFormation templates that target both real AWS and LocalStack should avoid hardcoded values that differ between the two environments. Using pseudo parameters and intrinsic functions keeps a single template portable without conditional logic or environment-specific parameter overrides.

Use AWS::URLSuffix for service domain names

Hardcoding amazonaws.com (or conversely localhost.localstack.cloud) when building service URLs is one of the most common causes of templates that deploy on AWS but fail on LocalStack, or vice versa. This typically shows up in API Gateway invoke URLs, Step Functions API integration targets, and other places where a template constructs a fully qualified endpoint.

The AWS::URLSuffix pseudo parameter resolves to amazonaws.com on AWS (or amazonaws.com.cn in China Regions) and to the configured LOCALSTACK_HOST on LocalStack, which defaults to localhost.localstack.cloud. Referencing it lets the same template produce a valid URL in either environment.

Avoid hardcoding the AWS suffix:

Outputs:
  ApiUrl:
    Value: !Sub "https://${MyApi}.execute-api.${AWS::Region}.amazonaws.com/${StageName}"

Reference AWS::URLSuffix instead:

Outputs:
  ApiUrl:
    Value: !Sub "https://${MyApi}.execute-api.${AWS::Region}.${AWS::URLSuffix}/${StageName}"

The same pattern applies when wiring an API Gateway stage into a Step Functions task, when building a WebSocket invoke URL, or any other integration Uri that embeds a service domain. The LocalStack team contributed this practice upstream to the AWS SAM application templates and to the AWS serverless patterns collection that backs serverlessland.com/patterns and the VS Code Application Builder.

Caution

AWS::URLSuffix is the right tool for endpoints your template constructs, such as API Gateway URLs or service domain joins. Avoid substituting it into URIs that AWS resolves to fixed production hostnames, for example:

• ECR image URIs such as <account>.dkr.ecr.<region>.amazonaws.com/<image>
• SageMaker built-in image URIs
• AppSync HttpConfig endpoints for Bedrock or Step Functions data sources

In those cases, the amazonaws.com suffix is part of a registry or service endpoint that is not served by LocalStack, so rewriting it can break the template on AWS without making it work on LocalStack.

Use AWS::Partition when building ARNs

Prefer composing ARNs with AWS::Partition, AWS::Region, and AWS::AccountId rather than embedding a literal arn:aws:... prefix. The resulting template also works on AWS GovCloud and AWS China without changes:

ManagedPolicyArns:
  - !Sub "arn:${AWS::Partition}:iam::aws:policy/service-role/AmazonAPIGatewayPushToCloudWatchLogs"

Reference resources with !Ref and Fn::GetAtt

When one resource needs the address of another, read it from the resource itself with !Ref or !GetAtt rather than constructing the URL from service domains. For example, use !GetAtt MyQueue.QueueUrl or !GetAtt MyBucket.DomainName so LocalStack returns the local endpoint while AWS returns the real one.

Feature coverage

Tip

We are continually enhancing our CloudFormation feature coverage by consistently introducing new resource types. Your feature requests assist us in determining the priority of resource additions. Feel free to contribute by creating a new GitHub issue.

Features

Feature	Support
Parameters	Partial
Dynamic References	Full
Rules	-
Mappings	Full
Conditions	Full
Transform	Full
Outputs	Full
Custom resources	Partial
Drift detection	-
Importing Resources	-
Change sets	Full
Nested stacks	Partial
StackSets	Partial
Intrinsic Functions	Partial

Note

Currently, support for UPDATE operations on resources is limited. Prefer stack re-creation over stack update at this time.

Note

Currently, support for NoEcho parameters is limited. Parameters will be masked only in the Parameters section of responses to DescribeStacks and DescribeChangeSets requests. This might expose sensitive information. Please exercise caution when using parameters with NoEcho.

Intrinsic Functions

Intrinsic Function	Supported	Explanation
Fn::And	Yes	Performs a logical AND operation on two or more expressions.
Fn::Or	Yes	Performs a logical OR operation on two or more expressions.
Fn::Base64	Yes	Converts a binary string to a Base64-encoded string.
Fn::Sub	Yes	Performs a string substitution operation.
Fn::Split	Yes	Splits a string into an array of strings.
Fn::Length	Yes	Returns the length of a string.
Fn::Join	Yes	Joins an array of strings into a single string.
Fn::FindInMap	Yes	Finds a value in a map.
Fn::Ref	Yes	References a resource in the template.
Fn::GetAtt	Yes	Gets an attribute from a resource.
Fn::If	Yes	Performs a conditional evaluation.
Fn::Import	Yes	Imports a value from another template.
Fn::ToJsonString	No	Converts an object or map into a json string.
Fn::Cidr	No	Generates a CIDR block from the inputs.
Fn::GetAZs	No	Returns a list of the Availability Zones of a region.

Pseudo Parameters

Pseudo parameters are built-in variables that CloudFormation resolves at deployment time. You can reference them with the Ref intrinsic function (for example, !Ref AWS::Region) or with Fn::Sub (for example, !Sub "${AWS::Region}"). LocalStack resolves each pseudo parameter to the equivalent value for the local environment, which lets the same template deploy against both AWS and LocalStack.

Pseudo Parameter	Supported	Value in LocalStack	Value in AWS
AWS::AccountId	Yes	The account ID used by the stack (default: 000000000000)	The AWS account ID of the account deploying the stack
AWS::NotificationARNs	Partial	Empty list	The list of SNS topic ARNs passed to the stack via --notification-arns
AWS::NoValue	Yes	Removes the corresponding property when used as a return value in Fn::If	Same
AWS::Partition	Yes	aws	aws, aws-cn, or aws-us-gov depending on the Region
AWS::Region	Yes	The Region of the encompassing resource	Same
AWS::StackId	Yes	The ARN of the stack	Same
AWS::StackName	Yes	The name of the stack	Same
AWS::URLSuffix	Yes	The configured LOCALSTACK_HOST (default: localhost.localstack.cloud)	amazonaws.com, or amazonaws.com.cn in China Regions

Tip

Reach for AWS::URLSuffix and AWS::Partition instead of hardcoding amazonaws.com or arn:aws:... in templates. See Best practices for details.

Resources

Resource Type ▲	Service ▲	Create	Delete	Update
AWS::ACMPCA::Certificate	ACMPCA	✅	✅	-
AWS::ACMPCA::CertificateAuthority	ACMPCA	✅	✅	-
AWS::ACMPCA::CertificateAuthorityActivation	ACMPCA	✅	✅	-
AWS::ACMPCA::Permission	ACMPCA	✅	✅	-
AWS::Amplify::App	Amplify	✅	✅	-
AWS::Amplify::Branch	Amplify	✅	✅	-
AWS::ApiGateway::Account	ApiGateway	✅	✅	-
AWS::ApiGateway::ApiKey	ApiGateway	✅	✅	✅
AWS::ApiGateway::Authorizer	ApiGateway	✅	✅	-
AWS::ApiGateway::BasePathMapping	ApiGateway	✅	✅	-
AWS::ApiGateway::Deployment	ApiGateway	✅	✅	-
AWS::ApiGateway::DomainName	ApiGateway	✅	✅	-
AWS::ApiGateway::GatewayResponse	ApiGateway	✅	✅	-
AWS::ApiGateway::Method	ApiGateway	✅	✅	-
AWS::ApiGateway::Model	ApiGateway	✅	✅	-
AWS::ApiGateway::RequestValidator	ApiGateway	✅	✅	-
AWS::ApiGateway::Resource	ApiGateway	✅	✅	-
AWS::ApiGateway::RestApi	ApiGateway	✅	✅	✅
AWS::ApiGateway::Stage	ApiGateway	✅	✅	-
AWS::ApiGateway::UsagePlan	ApiGateway	✅	✅	-

PreviousPage 1 of 14Next

API Coverage

Operation ▲	Implemented ▼	Verified on Kubernetes

PreviousPage 1 of 0Next
